您所在的位置:首页 > 载体库 > 植物相关载体
pGR107 构建费用500元/个起

请在线咨询或直接联系18986294316/17720555249

基本信息

载体类型:

植物 RNAi 载体(VIGS

载体抗性:

Kan

筛选标记:

G418

启动子

CaMV 35S

载体大小:

10436bp

克隆方法:

多克隆位点,限制性内切酶

5' 测序引物:

根据序列设计

3' 测序引物

根据序列设计

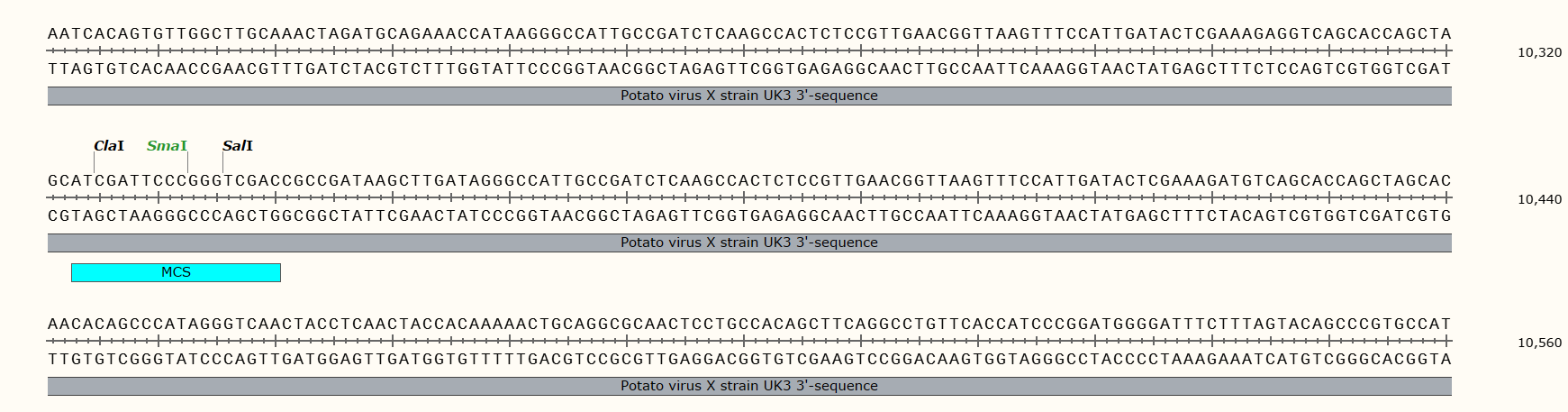

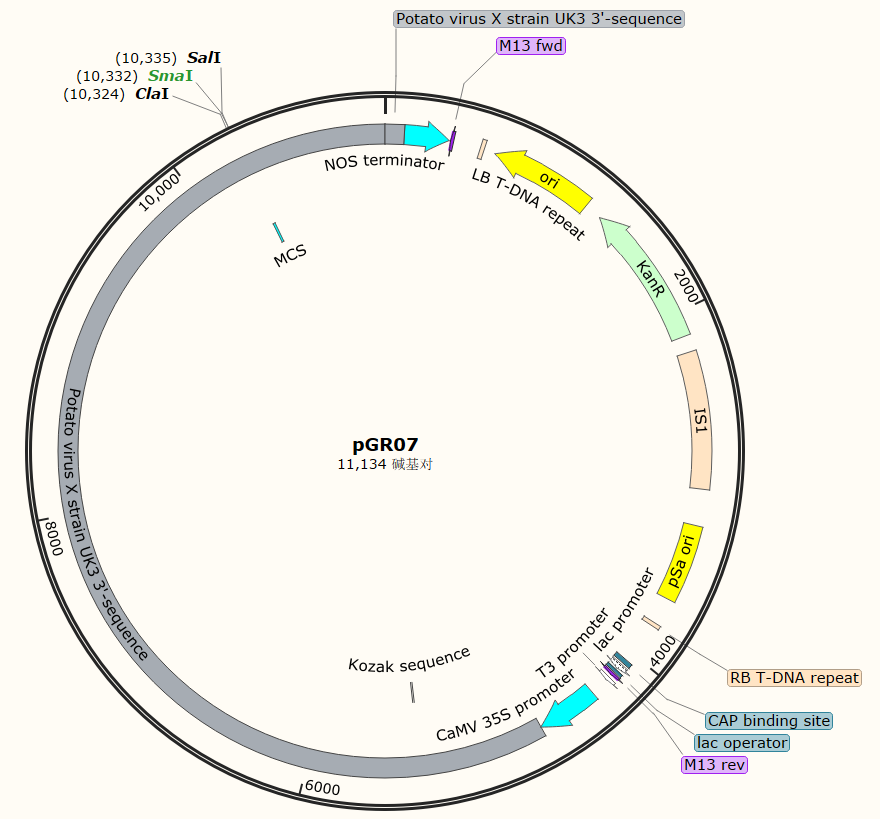

质粒图谱和多克隆位点信息

注意:

客户在我公司选择构建载体服务项目时,请自行提供母源载体。

如要使用本公司保存的母源载体时,本公司不能保证所有母源载体完全符合客户预期,也不承担由此产生的任何责任。

载体描述

Both pgR106 and pgR107 are binary vectors based on pGreen0000, they are basically the same vector except that the cloning site in pgR106 contains ClaI-AscI-NotI-SalI, while in pgR107 contains CalI-SmalI-SalI. AscI and NotI are rare cutting enzymes in that both of them are 8-basepair cutting enzymes and all the 8 base pairs consist of only GC, which will ensure less truncation for cDNA cloning. Therefore pgR106 is more suitable for cDNA library construction, while pgR107 is more suitable for PCR product cloning considering the SmaI site in its cloning site. The selection marker for pgR106 and pgR107 is kanamycin (50ug/ml). Both of them can replicate to high copy number in E.coli. But in agrobaterium they need helper plasmid pJIC Sa_Rep ,which carrys tetracycline as selection mark (5ug/ml), for replicating.

We recommend agrobacterium strain GV3101 to work with these two vectors because of its faster growth and high transformation efficiency, though other agrobacterium strains can also work very well with pgR106/pgR107.

Nicotianan benthamiana has been proved to be a suitable plant for easy inoculation and successful VIGS using these two vectors.

Cloning of target gene into VIGS vector

Just like normal cloning, nothing really special in this step. After transformation of E.coli., use kanamycin (50ug/ml) plate for positive colony selection. Then prepare plasmid from confirmed positive colonies and go to next step.

Transformation of agrobacterium

You can either use your constructs and helper plasmid pJIC SA_Rep together to do co-transformation of GV3101 or use your constructs only to transform GV3101 already containing pJIC SA_Rep. The transformation efficiency is much higher in the second method. Since pgR106/107 can not replicate in agrobacterium without pJIC SA_Rep, tetracycline is optional in the selective plate. But it is advisable to use both kanamycin and tetracycline as selection mark to prevent kanamycin resistant strains from contaminating.

The positive agrobacterium colony should be reconfirmed by PCR before inoculation. just to be sure the target gene insert is still there.

Toothpick inoculation of target plant

Once you get agrobacterium colonies containing VIGS constructs on the plate , pick up the colonies and stab target plant leaves on the main vein several times. Choose plants with size of about 5-6 cm in diameter for inoculation. Alternatively , you can infiltrate the agrobacterium culture into plant leaves, which normally gives stronger inoculum.

载体序列

tttttatccccggaagcctgtggatagagggtagttatccacgtgaaaccgctaatgccccgcaaagccttgattcacggggctttccggcccgctccaaaaactatccacgtgaaatcgctaatcagggtacgtgaaatcgctaatcggagtacgtgaaatcgctaataaggtcacgtgaaatcgctaatcaaaaaggcacgtgagaacgctaatagccctttcagatcaacagcttgcaaacacccctcgctccggcaagtagttacagcaagtagtatgttcaattagcttttcaattatgaatatatatatcaattattggtcgcccttggcttgtggacaatgcgctacgcgcaccggctccgcccgtggacaaccgcaagcggttgcccaccgtcgagcgccagcgcctttgcccacaacccggcggccggccgcaacagatcgttttataaatttttttttttgaaaaagaaaaagcccgaaaggcggcaacctctcgggcttctggatttccgatccccggaattagatcttggcaggatatattgtggtgtaacgttctcgcatgcctgcaggtcaacatggtggagcacgacacgcttgtctactccaaaaatatcaaagatacagtctcagaagaccaaagggcaattgagacttttcaacaaagggtaatatccggaaacctcctcggattccattgcccagctatctgtcactttattgtgaagatagtggaaaaggaaggtggctcctacaaatgccatcattgcgataaaggaaaggccatcgttgaagatgcctctgccgacagtggtcccaaagatggacccccacccacgaggagcatcgtggaaaaagaagacgttccaaccacgtcttcaaagcaagtggattgatgtgatatctccactgacgtaagggatgacgcacaatcccactatccttcgcaagacccttcctctatataaggaagttcatttcatttggagaggagaaaactaaaccatacaccaccaacacaaccaaacccaccacgcccaattgttacacacccgcttgaaaaagaaagtttaacaaatggccaaggtgcgcgaggtttaccaatcttttacagactccaccacaaaaactctcatccaagatgaggcttatagaaacattcgccccatcatggaaaaacacaaactagctaacccttacgctcaaacggttgaagcggctaatgatctagaggggttcggcatagccaccaatccctatagcattgaattgcatacacatgcagccgctaagaccatagagaataaacttctagaggtgcttggttccatcctaccacaagaacctgttacatttatgtttcttaaacccagaaagctaaactacatgagaagaaacccgcggatcaaggacattttccaaaatgttgccattgaaccaagagacgtagccaggtaccccaaggaaacaataattgacaaactcacagagatcacaacggaaacagcatacattagtgacactctgcacttcttggatccgagctacatagtggagacattccaaaactgcccaaaattgcaaacattgtatgcgaccttagttctccccgttgaggcagcctttaaaatggaaagcactcacccgaacatatacagcctcaaatacttcggagatggtttccagtatataccaggcaaccatggtggcggggcataccatcatgaattcgctcatctacaatggctcaaagtgggaaagatcaagtggagggaccccaaggatagctttctcggacatctcaattacacgactgagcaggttgagatgcacacagtgacagtacagttgcaggaatcgttcgcggcaaaccacttgtactgcatcaggagaggagacttgctcacaccggaggtgcgcactttcggccaacctgacaggtacgtgattccaccacagatcttcctcccaaaagttcacaactgcaagaagccgattctcaagaaaactatgatgcagctcttcttgtatgttaggacagtcaaggtcgcaaaaaattgtgacatttttgccaaagtcagacaattaattaaatcatctgacttggacaaatactctgctgtggaactggtttacttagtaagctacatggagttccttgccgatttacaagctaccacctgcttctcagacacactttctggtggcttgctaacaaagacccttgcaccggtgagggcttggatacaagagaaaaagatgcagctgtttggtcttgaggactacgcgaagttagtcaaagcagttgatttccacccggtggatttttctttcaaagtggaaacttgggacttcagattccaccccttgcaagcgtggaaagccttccgaccaagggaagtgtcggatgtagaggaaatggaaagtttgttctcagatggggacctgcttgattgcttcacaagaatgccagcttatgcggtaaacgcagaggaagatttagctgcaatcaggaaaacgcccgagatggatgtcggtcaagaagttaaagagcctgcaggagacagaaatcaatactcaaaccctgcagaaactttcctcaacaagctccacaggaaacacagtagggaggtgaaacaccaggccgcaaagaaagctaaacgcctagctgaaatccaggagtcaatgagagctgaaggtgatgccgaaccaaatgaaataagcgggacgatgggggcaatacccagcaacgccgaacttcctggcacgaatgatgccagacaagaactcacactcccaaccactaaacctgtccctgcaaggtgggaagatgcttcattcacagattctagtgtggaagaggagcaggttaaactccttggaaaagaaaccgttgaaacagcgacgcaacaagtcatcgaaggacttccttggaaacactggattcctcaattaaatgctgttggattcaaggcgctggaaattcagagggataggagtggaacaatgatcatgcccatcacagaaatggtctccgggctggaaaaagaggacttccctgaaggaactccaaaagagttggcacgagaattgttcgctatgaacagaagccctgccaccatccctttggacctgcttagagccagagactacggcagtgatgtaaagaacaagagaattggtgccatcacaaagacacaggcaacgagttggggcgaatacttgacaggaaagatagaaagcttaactgagaggaaagttgcgacttgtgtcattcatggagctggaggttctggaaaaagtcatgccatccagaaggcattgagagaaattggcaagggctcggacatcactgtagtcctgccgaccaatgaactgcggctagattggagtaagaaagtgcctaacactgagccctatatgttcaagacctctgaaaaggcgttaattgggggaacaggcagcatagtcatctttgacgattactcaaaacttcctcccggttacatagaagccttagtctgtttctactctaaaatcaagctaatcattctaacaggagatagcagacaaagcgtctaccatgaaactgctgaggacgcctccatcaggcatttgggaccagcaacagagtacttctcaaaatactgccgatactatctcaatgccacacaccgcaacaagaaagatcttgcgaacatgcttggtgtctacagtgagagaacgggagtcaccgaaatcagcatgagcgccgagttcttagaaggaatcccaactttggtaccctcggatgagaagagaaagctgtacatgggcaccgggaggaatgacacgttcacatacgctggatgccaggggctaactaagccgaaggtacaaatagtgttggaccacaacacccaagtgtgtagcgcgaatgtgatgtacacggcactttctagagccaccgataggattcacttcgtgaacacaagtgcaaattcctctgccttctgggaaaagttggacagcaccccttacctcaagactttcctatcagtggtgagagaacaagcactcagggagtacgagccggcagaggcagagccaattcaagagcctgagccccagacacacatgtgtgtcgagaatgaggagtccgtgctagaagagtacaaagaggaactcttggaaaagtttgacagagagatccactctgaatcccatggtcattcaaactgtgtccaaactgaagacacaaccattcagttgttttcgcatcaacaagcaaaagatgagaccctcctctgggcgactatagatgcgcggctcaagaccagcaatcaagaaacaaacttccgagaattcctgagcaagaaggacattggggacgttctgtttttaaactaccaaaaagctatgggtttacccaaagagcgtattcctttttcccaagaggtctgggaagcttgtgcccacgaagtacaaagcaagtacctcagcaagtcaaagtgcaacttgatcaatgggactgtgagacagagcccagacttcgatgaaaataagattatggtattcctcaagtcgcagtgggtcacaaaggtggaaaaactaggtctacccaagattaagccaggtcaaaccatagcagccttttaccagcagactgtgatgctttttggaactatggctaggtacatgcgatggttcagacaggctttccagccaaaagaagtcttcataaactgtgagaccacgccagatgacatgtctgcatgggccttgaacaactggaatttcagcagacctagcttggctaatgactacacagctttcgaccagtctcaggatggagccatgttgcaatttgaggtgctcaaagccaaacaccactgcataccagaggaaatcattcaggcatacatagatattaagactaatgcacagattttcctaggcacgttatcaattatgcgcctgactggtgaaggtcccacttttgatgcaaacactgagtgcaacatagcttacacccatacaaagtttgacatcccagccggaactgctcaagtttatgcaggagacgactccgcactggactgtgttccagaagtgaagcatagtttccacaggcttgaggacaaattactcctaaagtcaaagcctgtaatcacgcagcaaaagaagggcagttggcctgagttttgtggttggctgatcacaccaaaaggggtgatgaaagacccaattaagctccatgttagcttaaaattggctgaagctaagggtgaactcaagaaatgtcaagattcctatgaaattgatctgagttatgcctatgaccacaaggactctctgcatgacttgttcgatgagaaacagtgtcaggcacacacactcacttgcagaacactaatcaagtcagggagaggcactgtctcactttcccgcctcagaaactttctttaaccgttaagttaccttagagatttgaataagatggatattctcatcagtagtttgaaaagtttaggttattctaggacttccaaatctttagattcaggacctttggtagtacatgcagtagccggagccggtaagtccacagccctaaggaagttgatcctcagacacccaacattcaccgtgcatacactcggtgtccctgacaaggtgagtatcagaactagaggcatacagaagccaggacctattcctgagggcaacttcgcaatcctcgatgagtatactttggacaacaccacaaggaactctaaccaggcactttttgctgacccttatcaggcaccggagtttagcctagagccccacttctacttggaaacatcatttcgagttccgaggaaagtggcagatttgatagctggctgtggcttcgatttcgagaccaactcaccggaagaagggcacttagagatcactggcatattcaaagggcccctactcggaaaggtgatagccattgatgaggagtctgagacaacactgtccaggcatggtgttgagtttgttaagccctgccaagtgacgggacttgagttcaaagtagtcactattgtgtctgccgcaccaatagaggaaattggccagtccacagctttctacaacgctatcaccaggtcaaagggattgacatatgtccgcgcagggccataggctgaccgctccggtcaattctgaaaaagtgtacatagtattaggtctatcatttgctttagtttcaattacctttctgctttctagaaatagcttaccccacgtcggtgacaacattcacagcttgccacacggaggagcttacagagacggcaccaaagcaatcttgtacaactccccaaatctagggtcacgagtgagtctacacaacggaaagaacgcagcatttgctgccgttttgctactgactttgctgatctatggaagtaaatacatatctcaacgcaatcatacttgtgcttgtggtaacaatcatagcagtcattagcacttccttagtgaggactgaaccttgtgtcatcaagattactggggaatcaatcacagtgttggcttgcaaactagatgcagaaaccataagggccattgccgatctcaagccactctccgttgaacggttaagtttccattgatactcgaaagaggtcagcaccagctagcatcgattcccgggtcgaccgccgataagcttgatagggccattgccgatctcaagccactctccgttgaacggttaagtttccattgatactcgaaagatgtcagcaccagctagcacaacacagcccatagggtcaactacctcaactaccacaaaaactgcaggcgcaactcctgccacagcttcaggcctgttcaccatcccggatggggatttctttagtacagcccgtgccatagtagccagcaatgctgtcgcaacaaatgaggacctcagcaagattgaggctatttggaaggacatgaaggtgcccacagacactatggcacaggctgcttgggacttagtcagacactgtgctgatgtaggatcatccgctcaaacagaaatgatagatacaggtccctattccaacggcatcagcagagctagactggcagcagcaattaaagaggtgtgcacacttaggcaattttgcatgaagtatgctccagtggtatggaactggatgttaactaacaacagtccacctgctaactggcaagcacaaggtttcaagcctgagcacaaattcgctgcattcgacttcttcaatggagtcaccaacccagctgccatcatgcccaaagaggggctcatccggccaccgtctgaagctgaaatgaatgctgcccaaactgctgcctttgtgaagattacaaaggccagggcacaatccaacgactttgccagcctagatgcagctgtcactcgaggtcgtatcactggaacaacaaccgctgaggctgttgtcactctaccaccaccataactacgtctacataaccgacgcctaccccagtttcatagtattttctggtttgattgtatgaataatataaataaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaactagtgggtaccgcgaatttccccgatcgttcaaacatttggcaataaagtttcttaagattgaatcctgttgccggtcttgcgatgattatcatataatttctgttgaattacgttaagcatgtaataattaacatgtaatgcatgacgttatttatgagatgggtttttatgattagagtcccgcaattatacatttaatacgcgatagaaaacaaaatatagcgcgcaaactaggataaattatcgcgcgcggtgtcatctatgttactagatcgaattcactggccgtcgttttacaacgtcgtgactgggaaaaccctggcgttacccaacttaatcgccttgcagcacatccccctttcgccagctggcgtaatagcgaagaggcccgcaccgatcgcccttcccaacagttgcgcagcctgaatggcgaatggcgcctgatgagctccagcttttgttccctttagtgagggttaattccgagcttggcgtaatcatggtcatagctgtttcctgtgtgaaattgttatccgctcacaattccacacaacatacgagccggaagcataaagtgtaaagcctggggtgcctaatgagtgagctaactcacattaattgcgttgcgctcactgcccgctttccagtcgggaaacctgtcgtgccagctgcattaatgaatcggccaacgcgcggggagaggcggtttgcgtattgggcgctcttccgcttcctcgctcactgactcgctgcgctcggtcgttcggctgcggcgagcggtatcagctcactcaaaggcggtaatacggttatccacagaatcaggggataacgcaggaaagaacatgaaggccttgacaggatatattggcgggtaaactaagtcgctgtatgtgtttgtttgagatctcatgtgagcaaaaggccagcaaaaggccaggaaccgtaaaaaggccgcgttgctggcgtttttccataggctccgcccccctgacgagcatcacaaaaatcgacgctcaagtcagaggtggcgaaacccgacaggactataaagataccaggcgtttccccctggaagctccctcgtgcgctctcctgttccgaccctgccgcttaccggatacctgtccgcctttctcccttcgggaagcgtggcgctttctcatagctcacgctgtaggtatctcagttcggtgtaggtcgttcgctccaagctgggctgtgtgcacgaaccccccgttcagcccgaccgctgcgccttatccggtaactatcgtcttgagtccaacccggtaagacacgacttatcgccactggcagcagccactggtaacaggattagcagagcgaggtatgtaggcggtgctacagagttcttgaagtggtggcctaactacggctacactagaaggacagtatttggtatctgcgctctgctgaagccagttaccttcggaaaaagagttggtagctcttgatccggcaaacaaaccaccgctggtagcggtggtttttttgtttgcaagcagcagattacgcgcagaaaaaaaggatctcaagaagatcctttgatcttttctacggggtctgacgctcagtggaacgaaaactcacgttaagggattttggtcatggttacaaccaattaaccaattctgattagaaaaactcatcgagcatcaaatgaaactgcaatttattcatatcaggattatcaataccatatttttgaaaaagccgtttctgtaatgaaggagaaaactcaccgaggcagttccataggatggcaagatcctggtatcggtctgcgattccgactcgtccaacatcaatacaacctattaatttcccctcgtcaaaaataaggttatcaagtgagaaatcaccatgagtgacgactgaatccggtgagaatggcaaaagtttatgcatttctttccagacttgttcaacaggccagccattacgctcgtcatcaaaatcactcgcatcaaccaaaccgttattcattcgtgattgcgcctgagcgagacgaaatacgcgatcgctgttaaaaggacaattacaaacaggaatcgaatgcaaccggcgcaggaacactgccagcgcatcaacaatattttcacctgaatcaggatattcttctaatacctggaatgctgttttccctgggatcgcagtggtgagtaaccatgcatcatcaggagtacggataaaatgcttgatggtcggaagaggcataaattccgtcagccagtttagtctgaccatctcatctgtaacatcattggcaacgctacctttgccatgtttcagaaacaactctggcgcatcgggcttcccatacaatccatagattgtcgcacctgattgcccgacattatcgcgagcccatttatacccatataaatcagcatccatgttggaatttaatcgcggcctggagcaagacgtttcccgttgaatatggctcataacaccccttgtattactgtttatgtaagcagacagttttattgttcatgatgatatatttttatcttgtgcaatgtaacatcagagattttgagacacaacgtggctttgttgaataaatcgaacttttgctgagttgaaggatcagatcacgcatcttcccgacaacgcagaccgttccgtggcaaagcaaaagttcaaaatcaccaactggtccacctacaacaaagctctcatcaaccgtggctccctcactttctggctggatgatggggcgattcaggcgatccccatccaacagcccgccgtcgagcgggct
