pgRNA-humanized 构建费用500元/个起

请在线咨询或直接联系18986294316/17720555249

必腾预构载体定制最高250元/个

基本信息

别名:

pgRNA-humanizedU6-gRNA

体类型:

CRISPR/Cas系统

载体抗性:

氨苄青霉素

载体标签

/

筛选标记:

新霉素/G418

启动子

sp6

表达水平:

高拷贝

载体大小:

3915 bp

克隆方法:

TOPO Cloning

5' 测序引物:

T7

3' 测序引物

/

组成型:

组成型

备注

An empty gRNA expression vector, used to create a gRNA to a specific sequence.

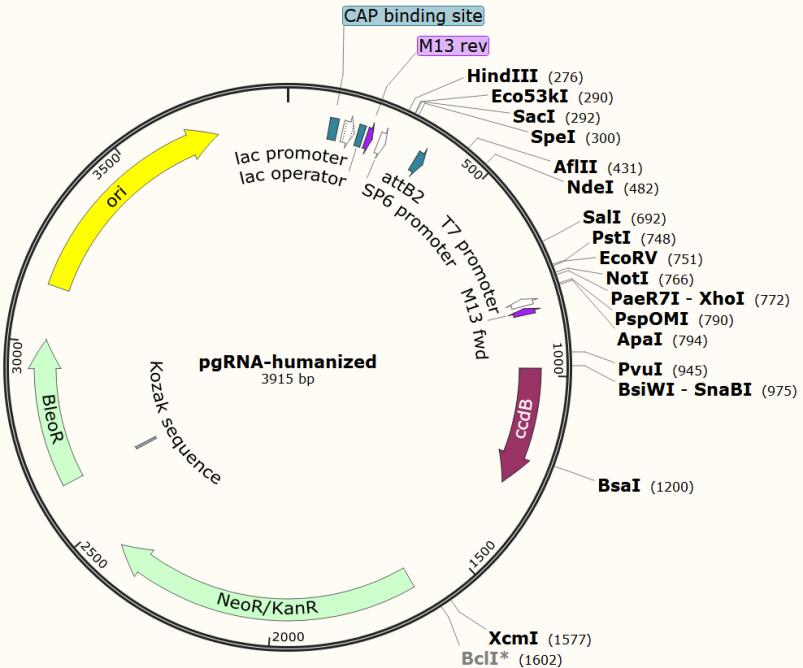

质粒图谱和多克隆位点信息

注意:

客户在我公司选择构建载体服务项目时,请自行提供母源载体。

如要使用本公司保存的母源载体时,本公司不能保证所有母源载体完全符合客户预期,也不承担由此产生的任何责任。



载体描述

An empty gRNA expression vector, used to create a gRNA to a specific sequence.



载体序列

LOCUS       Exported                3915 bp ds-DNA     circular SYN 10-APR-2019
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    pgRNA-humanized
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 3915)
  AUTHORS   BT-Lab
  TITLE     Direct Submission
  JOURNAL   Exported Wednesday, Apr 10, 2019 from SnapGene Viewer 4.3.6
COMMENT     Alias: gRNA_Cloning Vector,U6-gRNA
FEATURES             Location/Qualifiers
     source          1..3915
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     protein_bind    107..128
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     promoter        143..173
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    181..197
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     primer_bind     205..221
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     promoter        239..257
                     /label=SP6 promoter
                     /note="promoter for bacteriophage SP6 RNA polymerase"
     protein_bind    342..366
                     /gene="mutant version of attB"
                     /label=attB2
                     /bound_moiety="BP Clonase(TM)"
                     /note="recombination site for the Gateway(R) BP reaction"
     promoter        complement(803..821)
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     complement(828..844)
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
     CDS             982..1284
                     /codon_start=1
                     /gene="ccdB"
                     /product="CcdB, a bacterial toxin that poisons DNA gyrase"
                     /label=ccdB
                     /note="Plasmids containing the ccdB gene cannot be
                     propagated in standard E. coli strains."
                     /translation="QFKVYTYKRESRYRLFVDVQSDIIDTPGRRMVIPLASARLLSDKV
                     SRELYPVVHIGDESWRMMTTDMASVPVSVIGEEVADLSHRENDIKNAINLMFWGI"
     CDS             1633..2427
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     regulatory      2628..2637
                     /regulatory_class="other"
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
     CDS             2634..3008
                     /codon_start=1
                     /gene="Sh ble from Streptoalloteichus hindustanus"
                     /product="antibiotic-binding protein"
                     /label=BleoR
                     /note="confers resistance to bleomycin, phleomycin, and
                     Zeocin(TM)"
                     /translation="MAKLTSAVPVLTARDVAGAVEFWTDRLGFSRDFVEDDFAGVVRDD
                     VTLFISAVQDQVVPDNTLAWVWVRGLDELYAEWSEVVSTNFRDASGPAMTEIGEQPWGR
                     EFALRDPAGNCVHFVAEEQD"
     rep_origin      3146..3734
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
ORIGIN
        1 agcgcccaat acgcaaaccg cctctccccg cgcgttggcc gattcattaa tgcagctggc
       61 acgacaggtt tcccgactgg aaagcgggca gtgagcgcaa cgcaattaat gtgagttagc
      121 tcactcatta ggcaccccag gctttacact ttatgcttcc ggctcgtatg ttgtgtggaa
      181 ttgtgagcgg ataacaattt cacacaggaa acagctatga ccatgattac gccaagctat
      241 ttaggtgaca ctatagaata ctcaagctat gcatcaagct tggtaccgag ctcggatcca
      301 ctagtaacgg ccgccagtgt gctggaattc gccctttaat gccaactttg tacaagaaag
      361 ctgggtctag aaaaaaagca ccgactcggt gccacttttt caagttgata acggactagc
      421 cttattttaa cttaagatat ataaagccaa gaaatcgaaa tactttcaag ttacggtaag
      481 catatgatag tccattttaa aacataattt taaaactgca aactacccaa gaaattatta
      541 ctttctacgt cacgtatttt gtactaatat ctttgtgttt acagtcaaat taattctaat
      601 tatctctcta acagccttgt atcgtatatg caaatatgaa ggaatcatgg gaaataggcc
      661 ctcttcctgc ccgaccttgg taccggatcc agtcgactga attggttcct ttaaagcctg
      721 cttttttgta caaagggcga attctgcaga tatccatcac actggcggcc gctcgagcat
      781 gcatctagag ggcccaattc gccctatagt gagtcgtatt acaattcact ggccgtcgtt
      841 ttacaacgtc gtgactggga aaaccctggc gttacccaac ttaatcgcct tgcagcacat
      901 ccccctttcg ccagctggcg taatagcgaa gaggcccgca ccgatcgccc ttcccaacag
      961 ttgcgcagcc tatacgtacg gcagtttaag gtttacacct ataaaagaga gagccgttat
     1021 cgtctgtttg tggatgtaca gagtgatatt attgacacgc cggggcgacg gatggtgatc
     1081 cccctggcca gtgcacgtct gctgtcagat aaagtctccc gtgaacttta cccggtggtg
     1141 catatcgggg atgaaagctg gcgcatgatg accaccgata tggccagtgt gccggtctcc
     1201 gttatcgggg aagaagtggc tgatctcagc caccgcgaaa atgacatcaa aaacgccatt
     1261 aacctgatgt tctggggaat ataaatgtca ggcatgagat tatcaaaaag gatcttcacc
     1321 tagatccttt tcacgtagaa agccagtccg cagaaacggt gctgaccccg gatgaatgtc
     1381 agctactggg ctatctggac aagggaaaac gcaagcgcaa agagaaagca ggtagcttgc
     1441 agtgggctta catggcgata gctagactgg gcggttttat ggacagcaag cgaaccggaa
     1501 ttgccagctg gggcgccctc tggtaaggtt gggaagccct gcaaagtaaa ctggatggct
     1561 ttctcgccgc caaggatctg atggcgcagg ggatcaagct ctgatcaaga gacaggatga
     1621 ggatcgtttc gcatgattga acaagatgga ttgcacgcag gttctccggc cgcttgggtg
     1681 gagaggctat tcggctatga ctgggcacaa cagacaatcg gctgctctga tgccgccgtg
     1741 ttccggctgt cagcgcaggg gcgcccggtt ctttttgtca agaccgacct gtccggtgcc
     1801 ctgaatgaac tgcaagacga ggcagcgcgg ctatcgtggc tggccacgac gggcgttcct
     1861 tgcgcagctg tgctcgacgt tgtcactgaa gcgggaaggg actggctgct attgggcgaa
     1921 gtgccggggc aggatctcct gtcatctcac cttgctcctg ccgagaaagt atccatcatg
     1981 gctgatgcaa tgcggcggct gcatacgctt gatccggcta cctgcccatt cgaccaccaa
     2041 gcgaaacatc gcatcgagcg agcacgtact cggatggaag ccggtcttgt cgatcaggat
     2101 gatctggacg aagagcatca ggggctcgcg ccagccgaac tgttcgccag gctcaaggcg
     2161 agcatgcccg acggcgagga tctcgtcgtg acccatggcg atgcctgctt gccgaatatc
     2221 atggtggaaa atggccgctt ttctggattc atcgactgtg gccggctggg tgtggcggac
     2281 cgctatcagg acatagcgtt ggctacccgt gatattgctg aagagcttgg cggcgaatgg
     2341 gctgaccgct tcctcgtgct ttacggtatc gccgctcccg attcgcagcg catcgccttc
     2401 tatcgccttc ttgacgagtt cttctgaatt attaacgctt acaatttcct gatgcggtat
     2461 tttctcctta cgcatctgtg cggtatttca caccgcatac aggtggcact tttcggggaa
     2521 atgtgcgcgg aacccctatt tgtttatttt tctaaataca ttcaaatatg tatccgctca
     2581 tgagacaata accctgataa atgcttcaat aatagcacgt gaggagggcc accatggcca
     2641 agttgaccag tgccgttccg gtgctcaccg cgcgcgacgt cgccggagcg gtcgagttct
     2701 ggaccgaccg gctcgggttc tcccgggact tcgtggagga cgacttcgcc ggtgtggtcc
     2761 gggacgacgt gaccctgttc atcagcgcgg tccaggacca ggtggtgccg gacaacaccc
     2821 tggcctgggt gtgggtgcgc ggcctggacg agctgtacgc cgagtggtcg gaggtcgtgt
     2881 ccacgaactt ccgggacgcc tccgggccgg ccatgaccga gatcggcgag cagccgtggg
     2941 ggcgggagtt cgccctgcgc gacccggccg gcaactgcgt gcacttcgtg gccgaggagc
     3001 aggactgaca cgtgctaaaa cttcattttt aatttaaaag gatctaggtg aagatccttt
     3061 ttgataatct catgaccaaa atcccttaac gtgagttttc gttccactga gcgtcagacc
     3121 ccgtagaaaa gatcaaagga tcttcttgag atcctttttt tctgcgcgta atctgctgct
     3181 tgcaaacaaa aaaaccaccg ctaccagcgg tggtttgttt gccggatcaa gagctaccaa
     3241 ctctttttcc gaaggtaact ggcttcagca gagcgcagat accaaatact gtccttctag
     3301 tgtagccgta gttaggccac cacttcaaga actctgtagc accgcctaca tacctcgctc
     3361 tgctaatcct gttaccagtg gctgctgcca gtggcgataa gtcgtgtctt accgggttgg
     3421 actcaagacg atagttaccg gataaggcgc agcggtcggg ctgaacgggg ggttcgtgca
     3481 cacagcccag cttggagcga acgacctaca ccgaactgag atacctacag cgtgagctat
     3541 gagaaagcgc cacgcttccc gaagggagaa aggcggacag gtatccggta agcggcaggg
     3601 tcggaacagg agagcgcacg agggagcttc cagggggaaa cgcctggtat ctttatagtc
     3661 ctgtcgggtt tcgccacctc tgacttgagc gtcgattttt gtgatgctcg tcaggggggc
     3721 ggagcctatg gaaaaacgcc agcaacgcgg cctttttacg gttcctgggc ttttgctggc
     3781 cttttgctca catgttcttt cctgcgttat cccctgattc tgtggataac cgtattaccg
     3841 cctttgagtg agctgatacc gctcgccgca gccgaacgac cgagcgcagc gagtcagtga
     3901 gcgaggaagc ggaag
//
